Build Refinitiv Messenger Interactive Chat Bot with Python Machine Learning and Messenger Bot API

Moragodkrit Chumsri
Developer Advocate Developer Advocate


Update: October 2021

Nowadays, Chatbots are extremely helpful for business organizations and also customers. The majority of people prefer to talk directly from a chatbox instead of calling a Helpdesks. Some of the more advanced chatbots are powered by AI, helping them to solve problems, send personalized messages, and improve their interactions over time. It is a quick way to get their problems solved, so chatbots have a bright future in organizations. You can build a chatbot on top of the existing platforms and API. It does not look hard to study the background concepts and try to make it yourself.

Refinitiv also provides a new Messenger Bot API, which provides a set of available API calls to build automated workflows or create Bots for Refinitiv Messenger or Eikon Messenger. The Bot API allows your applications to connect with and pass information into Eikon's Messenger service programmatically and also build interactive chatbots. The Bot API includes a REST API and also provides a WebSocket to listen to events and to allow a bot to respond. All request and response bodies are encoded in JSON.


Today we are going to build our interactive Chatbot using Python with the Messenger Bot API. We will implement a chatbot from scratch that will be able to understand what the user is talking about and give an appropriate response like the below sample conversation.


There are three main steps to implement our Interaction Chatbot.

Step1: Building the Deep Learning Model

This step, we need to translate user input to recognize the intent. It can be solved with Machine Learning, and we are using Keras with TensorFlow backend in this project. We need to build a model using Keras and save it to local storage to reuse it in the main implementation of the ChatBot.

Step 2: Integrate Model with Messenger Bot API

We need to integrate implementation from steps 1 and 2 with Messenger Bot API to send and receive a message from a user's input. To make it short, we will modify the implementation of the Python example, which provided in the Messenger Bot example to integrate our ChatBot with original codes.

Step3: Keep track of the conversation context

Conversations in messaging apps often need context. If you're conversing with a customer and you refer to some data, the context is there. If you're asking for on-line support from the helpdesk to help you get some stock price/data, the representative can look it up, and again the context is there. This part is nothing much Machine Learning related here. But we need to implement Python codes to track the conversation context and link it to the appropriate conversation context in the set if required. It may not require a classification for user intents. If the context is the Bot's question, then the user input is treated as answers to chatbot questions.


  • You need to installation Refinitiv Messenger or Eikon Messenger, and you should be able to login to the messenger.
  • You should have Refinitiv Workspace or Eikon Desktop running to test functionality to retrieve prices and get time-series data using Eikon DATA API. And you need to install the Eikon Data API python library by running pip install eikon.
  • Please read Messenger BOT API Quick Start Guide and follow the instruction in the guide to set up the ChatBot account and create a chat room for the test.
  • Please read the Bot API Developer document. You need to understand the HTTP request and response message, Websocket implementation for interactive Bot along with the structure of data, and limitation of the API.
  • Python 3.7 or above
  • Download the Messenger Bot API python example from Github and then test the example with your account. You need to modify the codes from the file to implement the ChatBot.
  • You may install other Python libraries by using the ws-requirement.txt file. Note that if you found error when installing Tensorflow or Keras, you may need the following instruction on their website to install the library from GitHub instead.
            pip install -r ws-requirements.txt

Creating ChatBot

Let start by classification model training to classify the input from the user. You can download a full Python example from GitHub.

Step 1: Building the Deep Learning Model

Many popular articles are describing how to use Keras and TensorFlow to create the model. And this article will apply the codes and knowledge from this article with an additional sample from the Keras document to generate a classification model.

Below is a list of Python libraries that are used in the implementation. Keras deep learning library is used to build a classification model. Keras runs training on top of the TensorFlow backend. Lancaster stemming library from NLTK package is used to collapse distinct word forms:


import nltk

from import LancasterStemmer

stemmer = LancasterStemmer()


# things we need for Tensorflow

import numpy as np

from keras.models import Sequential

from keras.layers import Dense, Activation, Dropout

from keras.optimizers import SGD

import pandas as pd

import pickle

import random

We need to create an intents file, which is a plain JSON file.No need to have a large vocabulary. Our goal is to build a chatbot for a specific domain. The classification model can be created for small vocabulary too. It will be able to recognize a set of patterns provided for the training. Below is a sample data from ahsbot_intents.json file.



    "intents": [


            "tag": "greeting",

            "patterns": ["Hi there","How are you","Is anyone there?","Hello","Good day"],

            "responses": ["Hello, thanks for asking","Good to see you again","Hi there, how can I help?"],

            "context": [""]




            "tag": "options",

            "patterns": ["How you could help me?","What you can do?","What help you provide?","What support is offered","Help"],

            "responses": ["I can help you get some data like stock price or time-series.I can also provide some API details such as RDP API ad some Eikon Data API and provide a link to download API","Offering mainly support for Refinitiv Real-Time SDK. Anyway I know a little bit about Eikon Data API and can help you check some price"


            "context": [""]





            "tag": "get_data",

            "patterns": ["I want to retrieve data","get data","get stock data","Can you retreive data?","Can you help me get data?","Any way to get data."],

            "responses": ["I can retreive some of the timeseries data (limit to 30 days) or snapshot of stock price.\nDo you need timeseries or price?","Do you want to retreive timeseries (limit to 30 days) or price?"],

            "context": ["get_data"],




            "tag": "gettimeseries",

            "patterns": ["I want to get timeseries","I want to get timeseries data",

                "I want to retreive timeseries","I want to retrieve timeseries data",

                "historical data","timeseries data","get timeseries data",

                "get historical data","retreive historical data"],

            "responses": ["Please provide RIC name",

                "Can you provide RIC name"],

            "context": ["gettimeseries"],

            "context_link": ["ric_confirmed"]



            "tag": "getsnapshot",

            "patterns": ["I want to get price","Can I get price","Can I get stock price","Can you help me get stock price","get latest price","retreive snapshot data","retrieve stock price","retrieve latest price"],

            "responses": ["Please provide RIC name","Can you provide RIC name"],

            "context": ["getsnapshot"],

            "context_link": ["ric_confirmed"]



            "tag": "ric_confirmed",

            "patterns": [],

            "responses": ["Let me check, please wait.","Ok, Let me check.","Roger that! Wait for a second."],

            "context": [""]



Before we start the classification model training, we need to build vocabulary first. Patterns are processed to create a dictionary. Each word is stemmed to produce a generic root, and this would help to cover more combinations of user input:


# import our chat-bot intents file

import json

with open('ahsbot_intents.json') as json_data:

    intents = json.load(json_data)


words = []

classes = []

documents = []

ignore_words = ['?']

# loop through each sentence in our intents patterns

for intent in intents['intents']:

    for pattern in intent['patterns']:

        # tokenize each word in the sentence

        w = nltk.word_tokenize(pattern)

        # add to our words list


        # add to documents in our corpus

        documents.append((w, intent['tag']))

        # add to our classes list

        if intent['tag'] not in classes:


# stem and lower each word and remove duplicates

words = [stemmer.stem(w.lower()) for w in words if w not in ignore_words]

words = sorted(list(set(words)))

# sort classes

classes = sorted(list(set(classes)))

# documents = combination between patterns and intents

print (len(documents), "documents")

# classes = intents

print (len(classes), "classes", classes)

# words = all words, vocabulary

print (len(words), "unique stemmed words", words)

And this is the output of vocabulary creation. There are 16 intents or classes and 107 vocabulary words.


119 documents


16 classes ['changeconfidencelevel', 'clear_context', 'eikondataapipython', 'rtsdkdcompat', 'rtsdkdotnet', 'rtsdkdownload', 'rtsdkinfo', 'get_data', 'getsnapshot', 'gettimeseries', 'goodbye', 'greeting', 'options', 'thanks', 'rtsdkapi']


107 unique stemmed words ['#', "'s", ',', '.', '.net', '4.x', 'a', 'ad', 'adh', 'adjust', 'al', 'any', 'anyon', 'ap', 'ar', 'awesom', 'be', 'bye', 'c', 'c++', 'can', 'chang', 'chat', 'clear', 'confid', 'context', 'could', 'dac', 'dat', 'day', 'desktop', 'do', 'downalod', 'download', 'downoad', 'eikon', 'real-time', 'em', 'esdk', 'et', 'for', 'from', 'gcc', 'get', 'github', 'giv', 'good', 'goodby', 'hello', 'help', 'hi', 'hist', 'how', 'i', 'is', 'jav', 'lat', 'latest', 'level', 'linux', 'list', 'me', 'next', 'nic', 'of', 'off', 'ok', 'on', 'op', 'os', 'plan', 'pric', 'provid', 'publ', 'python', 'real', 'reset', 'retreiv', 'retriev', 'rfa', '', 'rhel7', 'sdk', 'see', 'snapshot', 'stock', 'support', 'thank', 'that', 'ther', 'til', 'tim', 'timesery', 'to', 'rtds', 'ubuntu', 'up', 'us', 'vert', 'want', 'way', 'what', 'wher', 'which', 'window', 'with', 'you']

Because machine learning is all about math, all data needs to be converted to numbers or numeric arrays. We need to convert words into bags of words with arrays containing 0 or 1. Array length will be equal to vocabulary size, and 1 will be set when a word from the current pattern is located in the given position:


# create our training data

training = []

# create an empty array for our output

output_empty = [0] * len(classes)

# training set, bag of words for each sentence

for doc in documents:

    # initialize our bag of words

    bag = []

    # list of tokenized words for the pattern

    pattern_words = doc[0]

    # stem each word - create base word, in attempt to represent related words

    pattern_words = [stemmer.stem(word.lower()) for word in pattern_words]

    # create our bag of words array with 1, if word match found in current pattern

    for w in words:

        bag.append(1) if w in pattern_words else bag.append(0)


    # output is a '0' for each tag and '1' for current tag (for each pattern)

    output_row = list(output_empty)

    output_row[classes.index(doc[1])] = 1


    training.append([bag, output_row])

# shuffle our features and turn into np.array


training = np.array(training)

Training data — X (pattern converted into array [0,1,0,1…, 0]), Y (intents converted into array [1, 0, 0, 0,…,0], there will be single 1 for intents array).


# create train and test lists. X - patterns, Y - inten

train_x = list(training[:,0])

train_y = list(training[:,1])

Refer to details from Keras document; we will use Keras Sequential to built a Model based on three layers. Note that from the test, three layers seem to return useful results depends on training data. Classification output will be multiclass array, which would help to identify encoded intent—using softmax activation to produce multiclass classification output (result returns an array of 0 or 1: [1,0,0,…,0] — this set identifies encoded intent). We will set DropOut to 0.5. DropOut is a simple way to prevent neural networks from overfitting during training times.



# Create model - 3 layers. First layer 128 neurons, second layer 64 neurons and 3rd output layer contains number of neurons


# equal to number of intents to predict output intent with softmax

model = Sequential()

model.add(Dense(128, input_shape=(len(train_x[0]),), activation='relu'))


model.add(Dense(64, activation='relu'))


model.add(Dense(len(train_y[0]), activation='softmax'))

Compile Keras model with SGD optimizer:


# Compile model. Stochastic gradient descent with Nesterov accelerated gradient gives good results for this model

sgd = SGD(lr=0.01, decay=1e-6, momentum=0.9, nesterov=True)

model.compile(loss='categorical_crossentropy', optimizer=sgd, metrics=['accuracy'])

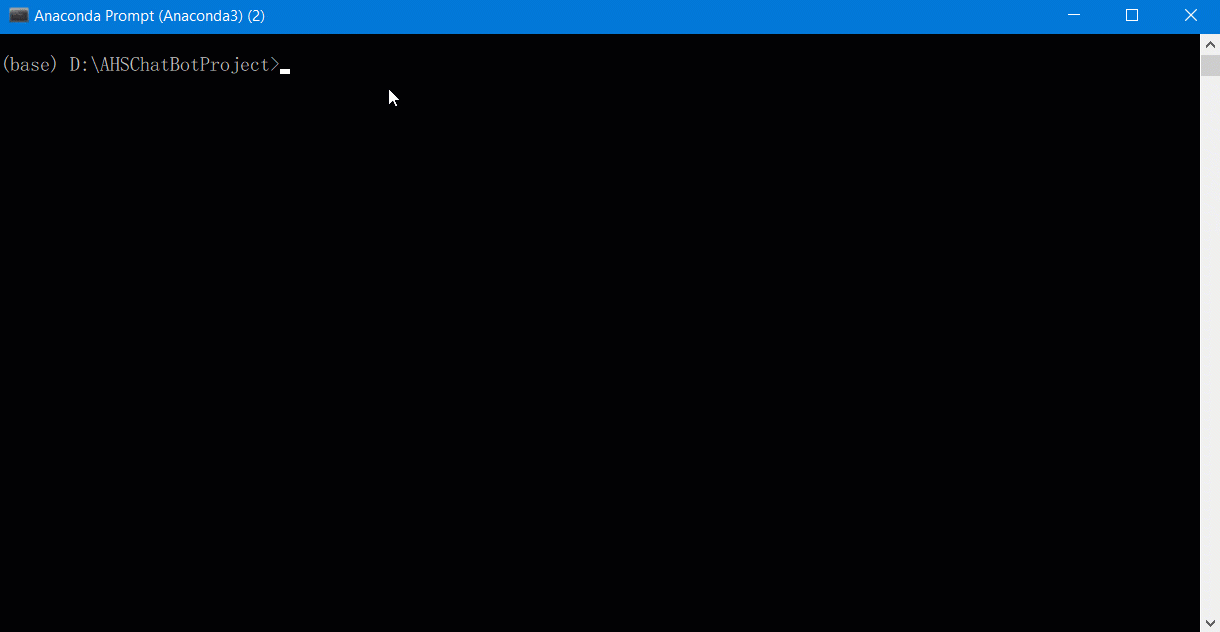

And then Fit the Model by executing training and construct classification model. We are running training in 200 iterations, with batch size = 5:


# Fit the model, np.array(train_y), epochs=200, batch_size=5, verbose=1)

This time the model is built. Now we will use two helper functions from original sample codes. Function bow helps to translate user sentences into a bag of words with arrays of 0 or 1. When the function finds a word from the sentence in chatbot vocabulary, it sets 1 into the corresponding position in the array. This array will be sent to be classified by the model to identify to what intent it belongs.

We will save the trained model into a pickle file to be able to reuse it in our ChatBot app.


# save model to file

pickle.dump(model, open("ahsbot-model.pkl", "wb"))

# save all of our data structures

pickle.dump( {'words':words, 'classes':classes, 'train_x':train_x, 'train_y':train_y}, open( "ahsbot-data.pkl", "wb" ) )

You can find a full python code to train the Bot from the file. You need to run it to re-train the Bot when you add data to the intents file.

Step 2: Integrate Machine Learning Model with Messenger Bot API

We need to create a function to classify user input based on calculated probability. We will define a threshold to filter the intent in the result. Multiple intents can be returned.


#Use pickle to load  data

data = pickle.load( open( "ahsbot-data.pkl", "rb" ) )

words = data['words']

classes = data['classes']


#Use pickle to load in the pre-trained model

with open('ahsbot-model.pkl', 'rb') as f:

    global model

    model = pickle.load(f)


def classify(sentence):

    # Add below two lines for workaround error _thread._local' object has no attribute 'value'

    import keras.backend.tensorflow_backend as tb

    tb._SYMBOLIC_SCOPE.value = True


    global model

    global confidence_level

    ERROR_THRESHOLD = confidence_level

    # generate probabilities from the model

    input_data = pd.DataFrame([bow(sentence, words)], dtype=float, index=['input'])


    results = model.predict([input_data],workers=1,verbose=1)[0]


    # filter out predictions below a threshold, and provide intent index

    results = [[i,r] for i,r in enumerate(results) if r>ERROR_THRESHOLD]

    # sort by strength of probability

    results.sort(key=lambda x: x[1], reverse=True)

    return_list = []

    for r in results:

        return_list.append((classes[r[0]], str(r[1])))

    # return tuple of intent and probability

    return return_list

Next step, we will create a botResponse method and then use the classify function to get a result and provide a response back to a user.


def botResponse(sentence, userID):

    import random

    tagResult = classify(sentence)

    if not tagResult:

        return "Sorry, I do not understand"

    responseList = list(filter(lambda x:x['tag'] == tagResult[0][0],intents['intents']))

    return random.choice(responseList[0]['responses'])

Test the method:


message='Can I use EMA with .NET?'




message='I want API to download historical data'




It will return the sentence from the ahsbot-intents.json file, which matches with intents returned from our model.


User: Can I use Refinitiv Real-Time SDK with .NET?

Bot: Currently Refinitiv Real-Time SDK (RTSDK) does not support .NET. Only C++ and Java version available on or


User: I want API to download historical data

Bot: Please see Tick Historical REST API and DSS API.Find details from and

Next steps, it's time to integrate the botResponse method to the Messenger BOT API example app.

If you would like to have an interactive Bot, then you will need to establish a WebSocket connection. The WebSockets are used to provide a persistent connection between two endpoints. They allow for access to real-time communication and will enable a bot to listen for events to create a more interactive bot. We will not describe the steps to establish a WebSocket connection in this article. Please refer to the Messenger Bot API document section WebSocket Connection for more details about the WebSocket implementation and limitation.

Instead of creating a new application from scratch, we will create a new file and copy original codes from, which is an example implemented for Messenger Bot WebSocket connection. Then we will modify the codes from to use our Chatbot when it sends a response back to the user. It will call our botResponse function instead. You need to modifying function process_message. It used to process a message from Websocket Client

on_message callback.


web_socket_app = websocket.WebSocketApp(






def on_message(_, message):  # Called when message received, parse message into JSON for processing

    print('Received: ')

    message_json = json.loads(message)

    print(json.dumps(message_json, sort_keys=True, indent=2, separators=(',', ':')))



# Process incoming message from a joined Chatroom

def process_message(message_json):


    if message_event == 'chatroomPost':


            incoming_msg = message_json['post']['message']

            sender = message_json['post']['sender']['email']

            resp_msg='@'+sender+' '+botResponse(incoming_msg,sender)

            post_message_to_chatroom(access_token, joined_rooms, chatroom_id,resp_msg)

        except Exception as error:

            print('Post meesage to a Chatroom fail :', error)

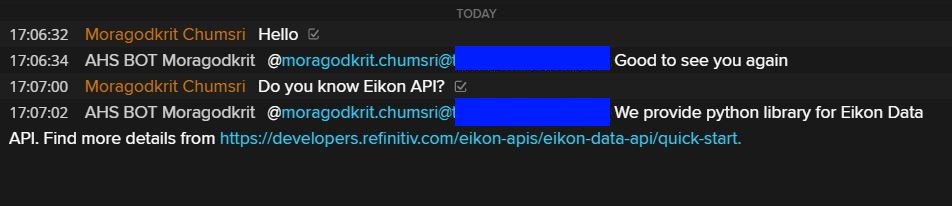

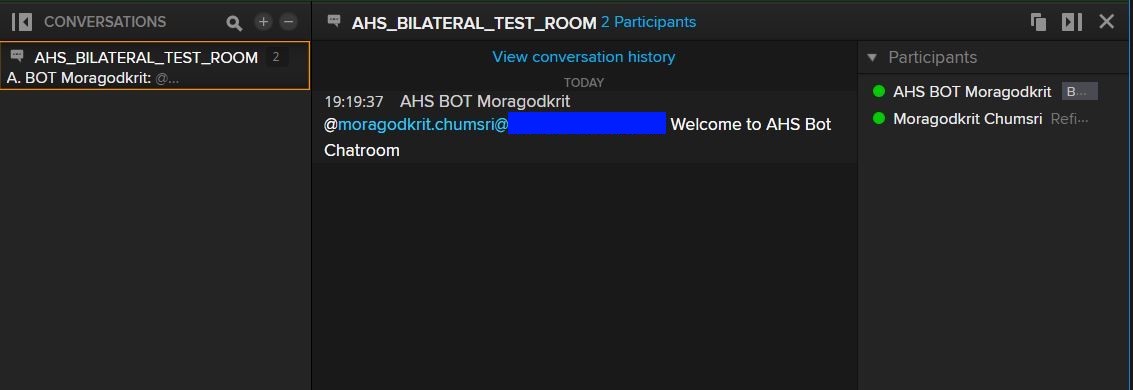

Below is a test result when running modified codes with BILATERAL Chatroom.

We are now successfully integrated our model to the interactive Messenger BOT API.

Step 3: Keep track of the conversation context

In the last step, we need to handle the context flow between ChatBot and the user. There is the scenario that the question may require additional input from the user to flow to the next conversation.

Check the following sample JSON data, and you should see some object has context_set and context_link tag.



            "tag": "get_data",

            "patterns": ["I want to retrieve data","get data","get stock data","Can you retreive data?","Can you help me get data?","Any way to get data."],

            "responses": ["I can retreive some of the timeseries data (limit to 30 days) or snapshot of stock price.\nDo you need timeseries or price?",

                "Do you want to retreive timeseries (limit to 30 days) or price?"],

            "context": ["get_data"],




            "tag": "gettimeseries",

            "patterns": ["timeseries",


                "get historical data","retreive historical data"


            "responses": ["Please provide RIC name","Can you provide RIC name"],

            "context": ["gettimeseries"],

            "context_link": ["ric_confirmed"]



            "tag": "getsnapshot",

            "patterns": ["I want to get price","Can I get price",


                "retrieve stock price","retrieve latest price"],

            "responses": ["Please provide RIC name","Can you provide RIC name"],

            "context": ["getsnapshot"],

            "context_link": ["ric_confirmed"]



            "tag": "ric_confirmed",

            "patterns": [],

            "responses": ["Let me check, please wait.","Ok, Let me check.","Roger that! Wait for a second."],

            "context": [""]


The context_set is a set of context which could be an answer to the question. Thus the query from the user must match one of the contexts in the context_set. The context_link is the next conversation context that the Bot has to respond in case that the Bot already received input from a user.

The below diagram is a sample scenario based on the JSON data. The white box in user input and blue box is for a BOT response.

There are four orange bullets, and each bullet represents the situation of the conversation context.

  • Bullet1

There is a conversation when the client wants to retrieve some data. The Bot will reply with a choice. This Bot can help the user retrieving either time-series data or snapshot price. So it has to ask a user to confirm the usage.

  • Bullet2

User input answer. The Bot may repeat the question if the context of the answer is not in the context_set.

  • Bullet3

The context of the answer is in context_set. Therefore, Bot asks a user to provide a RIC name. The user provides an answer, and the Bot will assume that the input is RIC name. It will create context_action, which is an internal command for the app. App also checks if the JSON object contains context_link, it will search for a tag that matches the value of context_link. Then it has to send the response back to the user.

  • Bullet4

The app will check the context_action and call an internal function to retrieving the data or do other actions. I don't' want to make it more complicated; therefore, our example call function from Eikon Data API to get price or time-series data accordingly.

We will add additional logics to handle the conversation context so you can find a complete code with new app logics from the file. Below is a sample chat log after updating the codes to handle the conversation context.

The additional implementation is beneficial in case you need to get input from the user and run an internal function or call external service to get some other data and return to the user.

Running ChatBot

Please download the full ChatBot project from GitHub

Note that currently, the Chatbot app was designed to works with Bilateral Chatroom only. The following steps have been applied to the application to test your Messenger Account with Messenger Bot API.

1) Load Model

2) Get RDP Token and share the token among the app

3) Check whether the Bilateral Chatroom Name is on the ChatRoom List. If the Chatroom was not created, create a new one. Then get a Chatroom ID from the list.

4) Bot join Chatroom using the Chatroom ID.

5) Bot invite a user to join the Chatroom using the recipient email.

6) Bot sends a welcome message to Chatroom.

7) The Bot connects to the Websocket server to monitoring messages from Chatroom and responds when receiving a new message.

There are two files you need to run.

  • is a Python script to train ChatBot, generate a model, and save the data and model to files. The project already contains pre-built data(ahsbot-data.pkl) and model (ahsbot-model.pkl), so you don't need to rerun it unless you want to modify or add sentence and data to ahsbot_intents.json.

You can run the script by executing the following command.


It will run Tensorflow to create the model and save it to file like the following output.

  • is the main ChatBot app.

Modify the following section in the Python codes. Change it to your account.


# Input your Bot Username

bot_username = 'bot_agent.<User>@<>'


# Input Bot Password

bot_password = '<Your BOT Password>'


# Input your Messenger account AppKey.

app_key = '<Your Bot AppKey>'


# Input your Eikon Data API AppKey

eikon_data_api_app_key = "Eikon Data API AppKey"


# Input your Messenger Application account email

recipient_email = ['<recipient email address>']


# Input BILATERAL Chat Room name

bilateral_chatroom_name = "<name of BILATERAL chatroom you want to create/want to join>"

You can set the following parameter to False in case that you don't have Eikon Desktop to test. The Bot will generate Dummy data when you retrieve the price.

            use_data_from_eikon =True

Please make sure that you have data and model files(ahs-data.pkl and adhsbot-model.pkl), including ahsbot-intense.json in the same folder before executing the following command.


You will see the following output when the Messenger BOT API connected to the server. The Eikon Messenger will pop up the welcome message we just sent to the Chatroom like the following screenshot.

You can type 'bye' to left the Chatroom. The app will remove your account from the participant list and shows a message like the following screenshot.



In this article, we have explained steps to build your Interactive ChatBot with Python Machine Learning and Messenger Bot API. There is more room to play, you may add a queue to queuing and processing the message, and you can integrate the core logics of ChatBot to web framework such as Flask to create Bot server. Moreover, you can create your Chatbot using other Python libraries such as ChatterBot, or you can apply a technologies/frameworks like Microsoft Bot Framework, ML.NETIBM Watson, or using Google Dialog Flow to implement the Bot. Then you can integrate your Bot system with Refinitiv Messenger Bot API using any programming language which provides HTTP Client library and Websocket Client library. You can incorporate the functionality of the other Refinitiv's APIs to retrieve particular information as well.

The future of Chatbots is very bright with the advancement in the Artificial Intelligence sector. Future Chatbot will not only be customer support; it will be an advanced assistant for both the business and the consumer.AI Chatbot will take over repetitive and tedious tasks on behalf of a human. The Chatbot that we just built is quite simple, but this example should help you think through the design and challenge of creating your Bot.
